Standard RS232/RS485/CAN communication interface,
- Commodity ID: JMC1810
Turnstile gate servo driver/controller

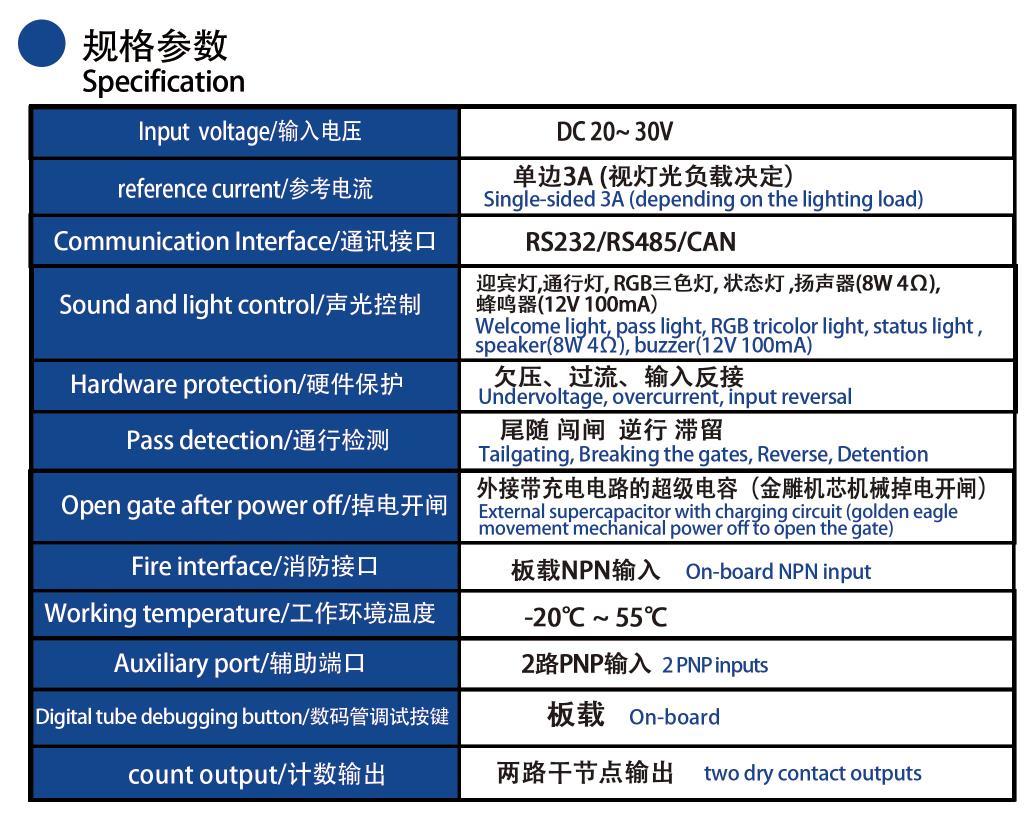

- Functional features

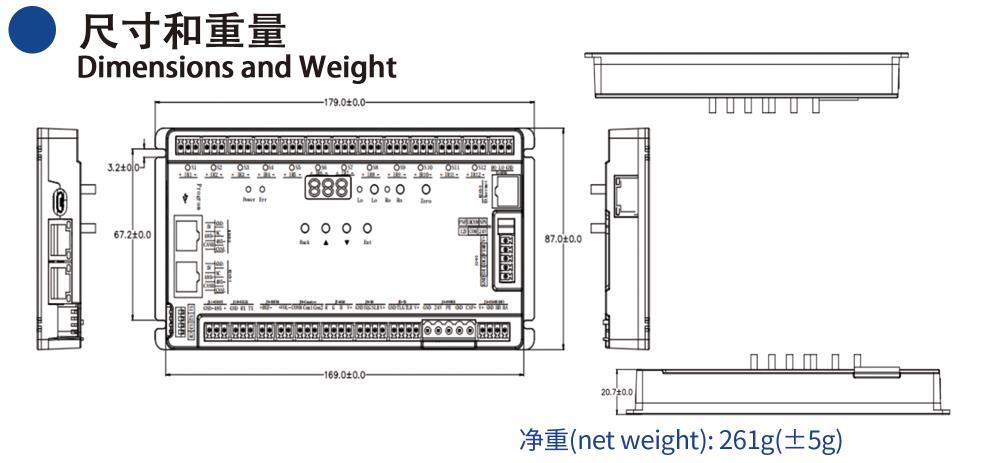

- Installation dimensions
- Control Port

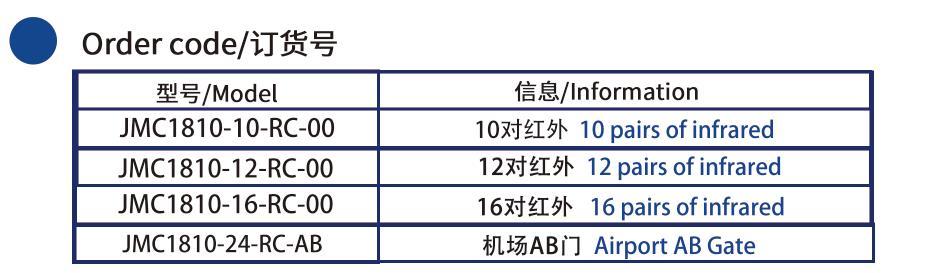

- Ordering Information
- Channel gate dedicated drive control
Adapt to EPS2408, APS8010, MSD100 and other dedicated servo drivers for gates, providing complete access logic control for channel gates;
Real-time detection of channel status and traffic behavior can achieve high security level anti-tailgating control;
Modular input design is adopted, which can be expanded to 48 pairs of infrared sensors for independent access;
Support RS232, RS485, IO and other control methods, provide Modbus communication protocol, and can be connected with access control and host computer.
Narrow body shape design can be applied to the space with minimal width and height With 8-channel digital signal input and 4-channel digital signal output interfaces, IO interface can Set PNP type and NPN type, IO port can directly drive relay The IO port is optically isolated from the inside of the driver, and the isolation withstand voltage is up to 1500V double-circuit system Dynamic output, braking current up to 1.5A
Provide 3 pairs, 6 pairs and 8+4 pairs of standard layout infrared logic; Adapt to EPS2408 series, APS8010 series and other servo drivers; The matching infrared adapter board supports up to 36 pairs of infrared sensors independently, The infrared type can be PNP or NPN, and also supports light curtain sensor; Suitable for subway or airport complex infrared logic
It is suitable for low-voltage DC servo motor and adopts incremental encoder feedback as closed-loop control. For use scenarios such as violent brake breaking, a special circuit is designed inside to ensure the stable operation of the driver and power supply. RS232/RS485/CAN communication interface is equipped as standard, standard communication protocol is provided, and complete channel control can be realized by docking with the upper computer.
For use scenarios such as violent brake breaking, the brake module is designed internally to ensure the stable operation of the driver and power supply; It supports RS232, RS485, CAN and other communication modes, provides Modbus communication protocol, and can interface with logic controller; All terminals adopt plug-in design, without screwing, to ensure safe wiring;
