Standard RS232/RS485 communication interface,

    • Commodity ID: APS2AC05


AC servo driver

Contact us
  • Functional features

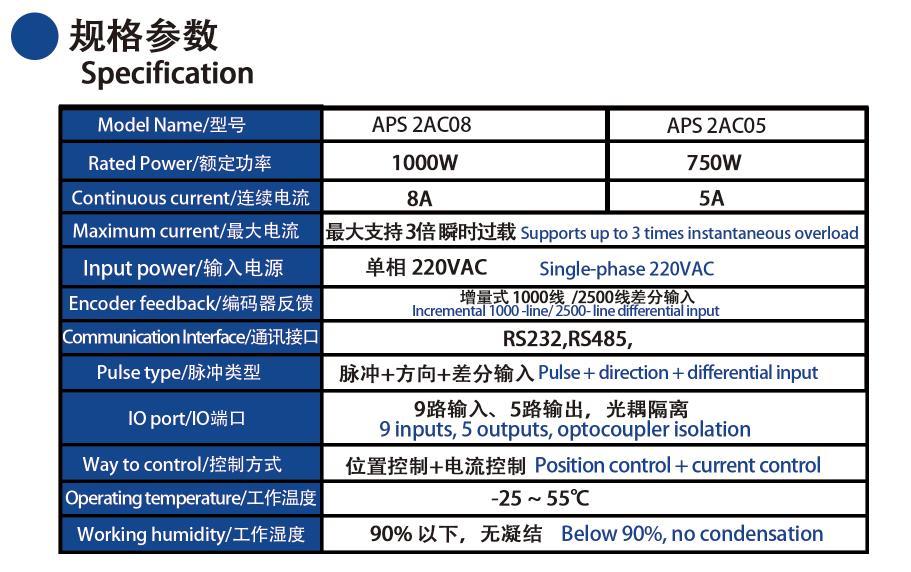

  • Parameter

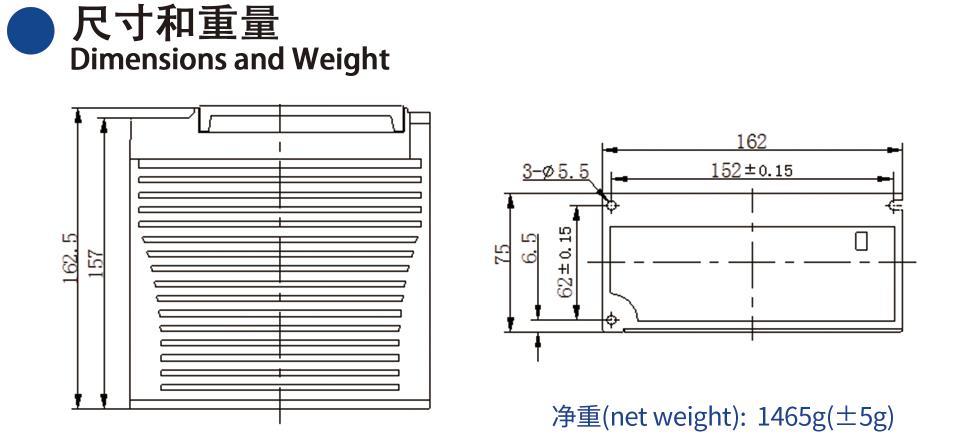

  • Installation dimensions
  • Control Port

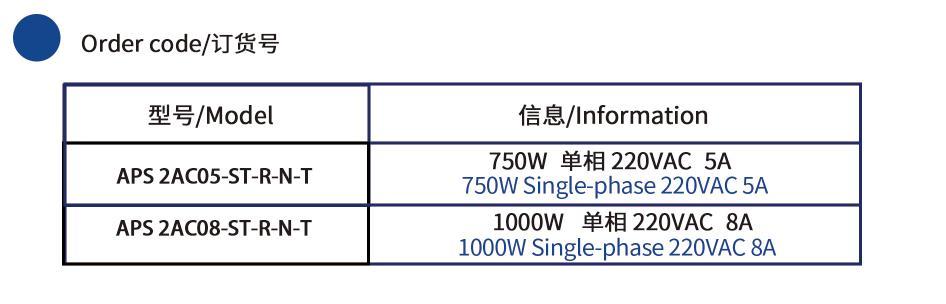

  • Ordering Information
  • Apply

  • 5-digit digital tube display, built-in buttons, parameters can be modified offline, convenient for debugging and maintenance.

    Using an incremental encoder, it only needs to set the zero position once, and the position is memorized when the power is turned on, which is convenient to use.

    It has 8 channels of digital signal input, 4 channels of digital signal output interface, the IO interface can be set to PNP type and NPN type, and the IO port can directly drive the relay.

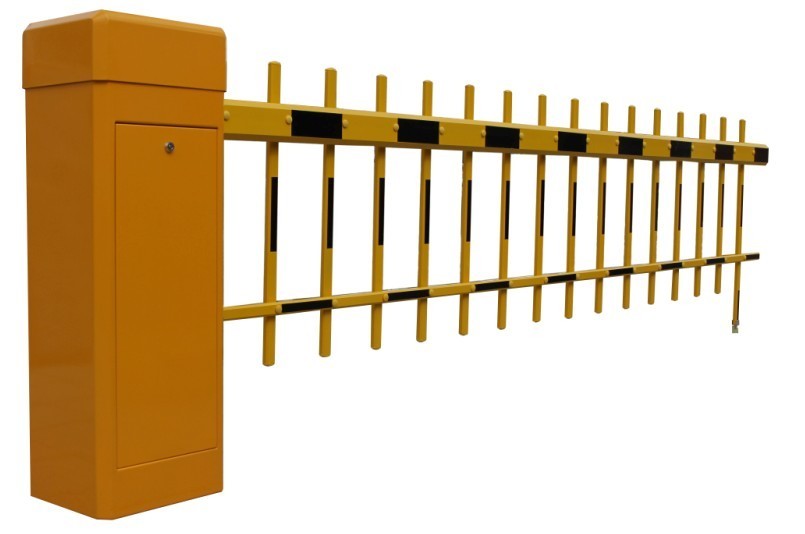

  • 道闸
