EBS40F-100W

DC24V 3000 rpm; 100W With servo overload characteristic, it can realize 3 times of current overload, and the resistance of forced thrust is greater than that of brushless force The motor installation size is compatible with Panasonic and Delta motors of the same series, which can realize rapid interchangeability;

- Commodity ID: EBS40F

Classify：

DC servo motor

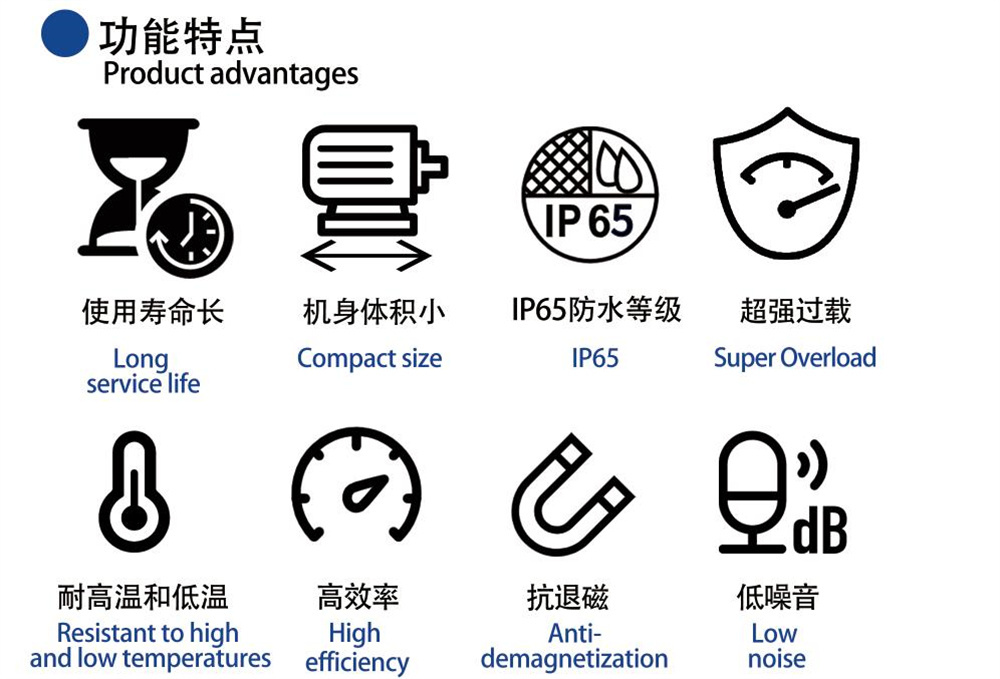

Functional features

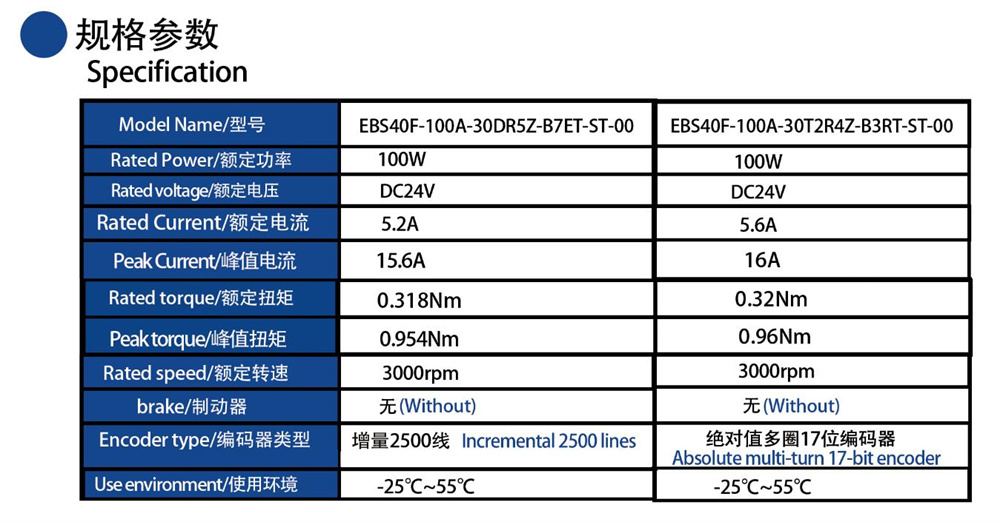

Parameter

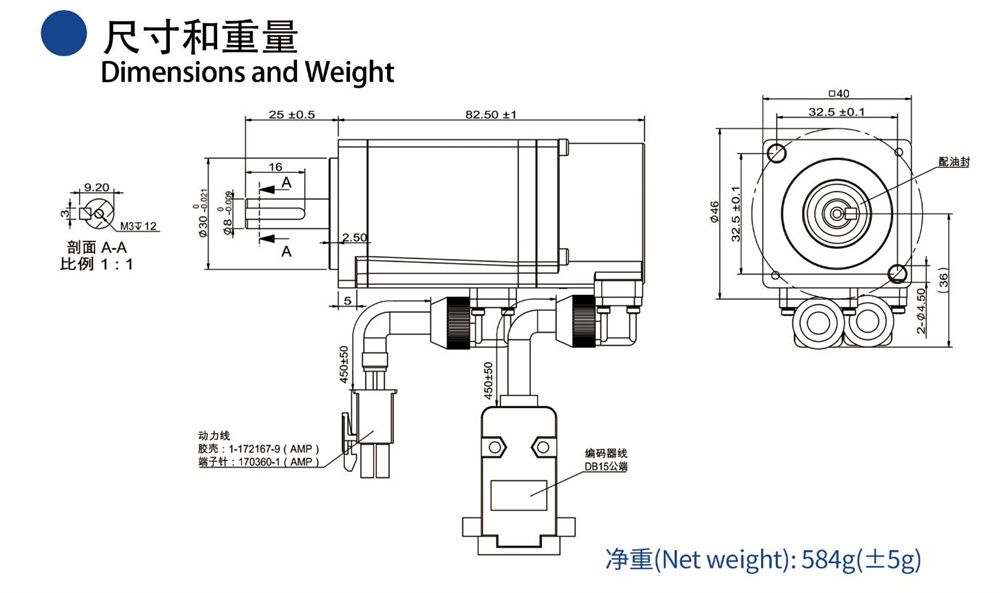

Installation dimensions
Control Port
Ordering Information
Apply

Key words:
- DC servo motor

The previous

The previous

Related Products

DC48V 3000 rpm; 200W~400W; Universal servo motor, rotor made of strong magnetic material; Low jitter at low speed; High and low temperature resistance, - 25 ℃ to 55 ℃; The noise is as low as 30 dB;

EBS80F-1000W

DC48V 3000 rpm; 750W~1000W; Universal servo motor, rotor made of strong magnetic material; Low jitter at low speed High and low temperature resistance, - 25 ℃ to 55 ℃;

EBS80F-750W

DC48V 3000 rpm; 750W~1000W; Universal servo motor, rotor made of strong magnetic material; Low jitter at low speed The noise is as low as 30 dB;

EBS60F-400W

DC48V 3000 rpm; 200W~400W; Universal servo motor, rotor made of strong magnetic material; The noise is as low as 30 dB;
